主成分分析と回転

2025.06改訂



主成分分析の古典的説明では、主成分は1つずつ構成され、それらの組み合わせに対する回転は不適切であるとされる。しかし、主成分分析を低次元空間への正射影として考える場合は、射影先の空間における座標系は数学的には任意である(岡本, 2006岡本(2009)「統計学を学ぶための数学入門[下]」培風館、第5.7節「正射影の例」6870岡本(2014)「心理学データ分析と測定」勁草書房、第5章「情報の骨子を見る:主成分分析」6777岡本(2019)「いまさら聞けないPythonでデータ分析」丸善出版、第7章「主成分分析」115129)。すなわち、実質的な解釈のための適切な座標系を求めることが可能であり、回転はこの座標系の選択のための数学的方法である。

Deisenroth, Faisal, and Ong (2020), Mathematics for Machine Learning. Cambridge University Press, Chapter 10においても、主成分分析が低次元空間への正射影で説明されている。

主成分分析をデータ空間の低次元空間への正射影と考え、初期解としての主成分、および直交回転(バリマックス回転)と斜交回転(コーティミン回転)による単純パターンを求めるPythonプログラムを作成した。メインプログラムファイルMainPrg.pyとモジュールファイルinit_pca.pyPlotComp.pyrotate.pyArrangePat.py、およびサンプルデータファイルDataSubjects.csvを圧縮ファイルpcafiles.zipにまとめた。ファイル名pcafiles.zipをクリックしてダウンロードすれば展開・解凍して利用することができる。回転のモジュールrotate.pyは独立しているので、他の回転を行う因子分析などのスクリプトで用いることができる。



メインプログラムMainPrg.pyPCAを行うクラス型InitPCAのモジュールinit_pca.py、回転を行うモジュールrotate.pyは、本ウェブサイトの後ろにリスト1リスト2、およびリスト3として示した。

まず、主成分分析を正射影の観点(Okamoto, 2006)から説明し、その後、プログラムの使用法について説明する。





正射影の観点から見た主成分分析



データは複数の変量の値として与えられる。例えば、身長、体重、血圧の3つの変量の場合は、各人のデータは3次元ベクトル

で表される。このデータを40人から収集すると、40人のデータは3次元空間において40個の点として表される。変量の数が多い場合、データの各点は変量数の次元という高次元空間において表されるが、これを低次元の空間に写してデータの分布が表されるとデータの情報が読み取りやすくなる。例えば、2次元空間でデータの分布が表された場合は、平面上にデータの分布が散布図として表される。データの分布を低次元の空間で表す方法として主成分分析がある。

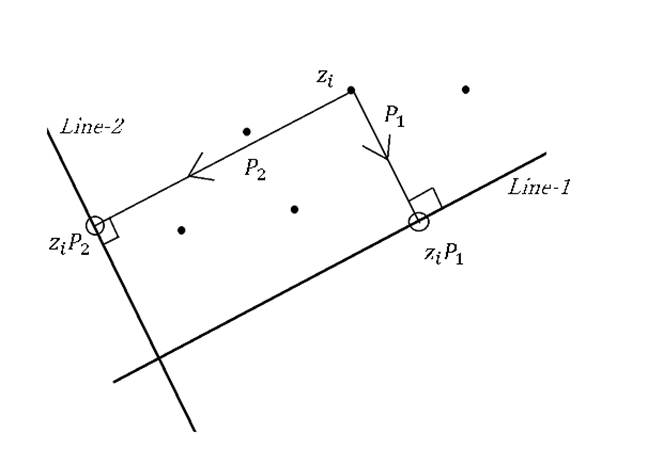

直感的に説明するために、図1のようにデータが2変量からなる場合を考える。詳しい説明は、Okamoto (2006)を参照されたい。

図1



このとき、データの各点は、平面上の分布として表される。図1では、5個のデータが表されている。これを1次元空間、すなわち直線上の分布として表すことを考える。図1では、直線Line-1と直線Line-2に点の射影をとる場合を表している。射影とは、点に光を当ててその影を求めることと説明される。図1の場合は、直線に対して垂直真上から光を当てて直線上に影を求めているので正射影(orthogonal projection)と呼ぶ。影を落とす直線に対して斜め上から光を当てる場合は、射影(projection)と呼ぶ。

射影は、一般的には、s次元空間からr次元空間への影を求めることと考えられるが、正射影の場合は、r次元空間に対して垂直な方向に光の方向が決まるので、影を投影する空間が決まれば、正射影も決まる。s次元空間の点を

と表したとき、r次元空間への正射影は

と行列による積で表すことができる(岡本、2009pp. 65-68)。主成分分析では、元のs次元でのデータの分布を最もよく反映するr次元への正射影を求める。元の分布を最もよく反映するということを、その分散が最大になることと考える。図1の例で言えば、直線Line-1への正射影が、2次元での分布をよく反映するものであると考える。直線Line-1に比べて直線Line-2への正射影は、正射影した点の散らばりが小さいという意味で2次元での分布の様子の反映が劣ると考える。

式(1)の形式のデータが組与えられているとする。それを行列

で表す。主成分分析では変量間の関係を見るので、各変量を平均0、標準偏差1に揃えて原点と単位の影響を除いて分析することが考えられる。式(2)の変量の値を平均0、標準偏差1の標準得点に直したもの(3)について考える。

このに対して、射影されたの分散が最大になる正射影Pを求める。r次元空間での分散を次式(4)で表す。

なお、Deisenroch et al.(2020)は、正射影との差の2乗和

を最小にするものとして求めている。

が成り立つので、分散(4)を最大にすることと、誤差の2乗和(D)を最小にすることとは同じである。



式(4)を最大にする正射影Pは次式(5)で与えられる。

ここで、は次式の特異値分解で与えられるものである。

このとき、

である。式(6)の値は、のとき、

となる。

相関行列をRとおくと、

となり、相関行列の固有分解によりを得ることができる。

射影されたの空間において、座標軸をの座標値の分散が最大になるようにお互いに直交するものを選ぶとになる。このときの座標値は主成分(principal components)と呼ばれている。主成分をで表すと、次式で与えられる。

空間における基底を以外に取ったときは、の座標値は成分(components)と呼ぶ。成分との関係を表す行列はパターン行列(pattern matrix)と呼ぶ。

主成分のパターン行列は次式で与えられる。

空間における基底を以外にとると、各座標軸の解釈が容易になる場合がある。いま、基底をにとったとする。座標間の変換を表す行列をとおく。すなわち、

である。このを、回転(rotation)と呼ぶ。正規直交基底間の回転のときは、直交回転(orthogonal rotation)、それ以外のときは斜交回転(oblique rotation)と呼ぶ。

基底における成分とパターン行列は次式で与えられる。

2つのパターン行列が与えられると、回転は次式

で与えられる。

したがって、パターン行列が与えられたときの成分の変換式は

となる。

以上の式は、岡本(2019)「いまさら聞けないPythonでデータ分析」の第7章「主成分分析」でも説明している。







Pythonスクリプトの実行



上の主成分分析を行うPythonスクリプトを用意した。スクリプトファイルとサンプルデータファイルは、圧縮ファイルpcafiles.zipにまとめた。ダウンロード・解凍して利用することができる。

スクリプトの使用法を、表1の仮想データを用いて説明する。



表1 仮想データDataSubjects.xlsx

通 番

ID

国 語

Jpn

英 語

Eng

歴 史

Hist

数 学

Math

物 理

Phys

化 学

Chem

1

48

46

60

47

68

44

2

54

49

63

61

49

45

3

48

55

47

49

49

47

4

83

78

85

79

66

63

5

56

49

56

78

70

73

6

78

86

76

67

67

75

7

62

64

59

62

69

57

8

80

78

82

82

80

75

9

55

49

58

79

67

75

10

53

65

63

75

89

77

11

45

52

53

47

41

42

12

59

62

72

56

72

72

13

44

34

49

54

65

59

14

79

64

75

37

15

9

15

62

69

66

71

67

66

16

72

63

66

80

84

72

17

78

82

83

81

67

81

18

62

73

63

60

64

67

19

66

60

61

64

43

63

20

70

66

71

50

55

52

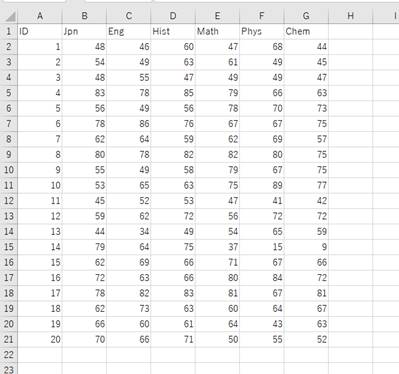

メインスクリプトMainPrg.pyを実行すると、入力データファイル名が求められる。入力データファイルは、Excelファイルとして用意する(図1)。1行目に変数名、1列目にデータのIDが入力されている。



図1



入力データファイル名を設定すると、ファイルが読み込まれて表示され、出力テキストファイル名の設定が求められる。出力テキストファイル名は任意である。



Input data file (*.xlsx) = DataSubjects.xlsx

Output data file = Results.txt

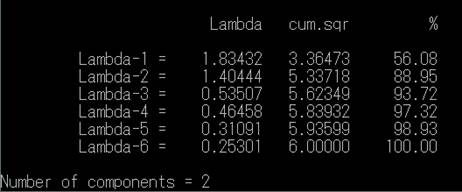

入力データフィル名と出力ファイル名を設定すると計算が始まる。まず、固有分解が行われて、固有値が計算され、累積2乗和などが端末に以下のように表示される。





                        Lambda   cum.sqr         %



         Lambda-1 =    1.83432   3.36473     56.08

         Lambda-2 =    1.40444   5.33718     88.95

         Lambda-3 =    0.53507   5.62349     93.72

         Lambda-4 =    0.46458   5.83932     97.32

         Lambda-5 =    0.31091   5.93599     98.93

         Lambda-6 =    0.25301   6.00000    100.00





また、スクリープロットも図2のように表示される。

図2



これらから、主成分数は2が適当であると考えられる。

図2のフォームを閉じると、次のように主成分数を聞いてくる。



Number of components =



いまの場合、2と設定してみる。



Number of components = 2



主成分数を設定すると計算が始まり、主成分パターンのプロットを行うときの横軸の主成分の設定が求められる。



Number of components = 2



Set the component number (from 1 to 2) to plot the pattern.

If you do not want to plot the pattern, set the number less than 1.

xdim =



いまの場合、横軸の主成分として1を設定してみる。横軸の主成分を設定すると縦軸の主成分を聞いてくる。



Set the component number (from 1 to 2) to plot the pattern.

If you do not want to plot the pattern, set the number less than 1.

xdim = 1

ydim = 2

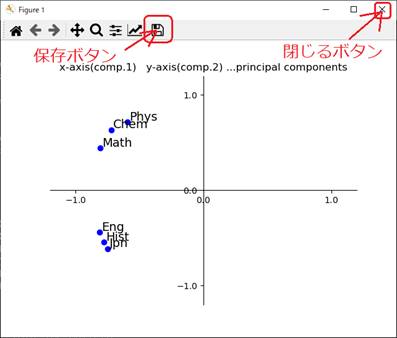

上の例では、縦軸として主成分2を設定している。縦軸の主成分を指定すると、指定した主成分の組み合わせで描かれたパターンが表示される(図3)。

図3



フォームの右上のX印をクリックしてフォームを閉じると、次の表示成分の設定が求められる。



Number of components = 2



Set the component number (from 1 to 2) to plot the pattern.

If you do not want to plot the pattern, set the number less than 1.

xdim = 1

ydim = 2



Set the component number (from 1 to 2) to plot the pattern.

If you do not want to plot the pattern, set the number less than 1.

xdim = 0

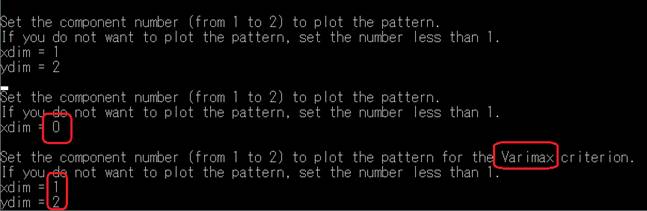

成分として1より小さい値を設定すると(上の例では0)、初期値である主成分のパターン行列の表示は終了して、Varimax回転が行われ、Varimax回転後のパータン行列の表示における成分の指定が求められる。



Set the component number (from 1 to 2) to plot the pattern for the Varimax criterion.

If you do not want to plot the pattern, set the number less than 1.

xdim = 1

ydim = 2

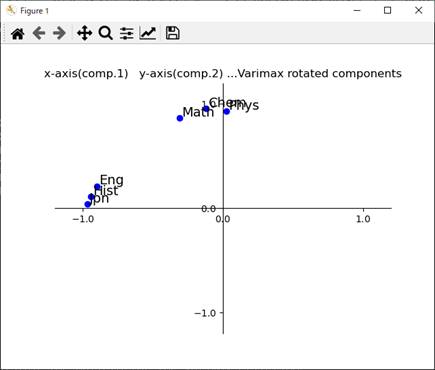

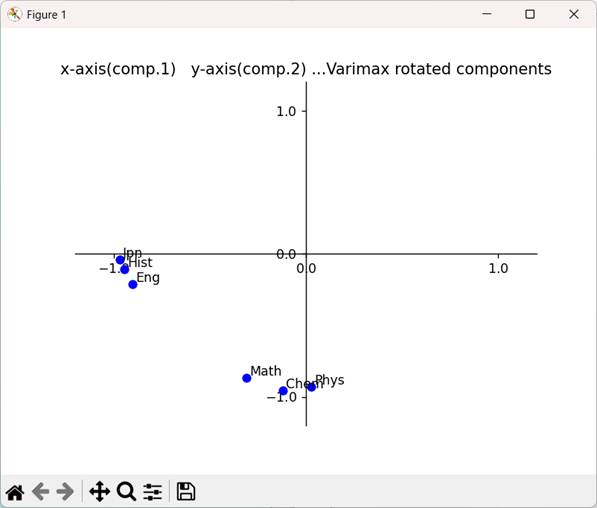

上の例のように設定すると、図4の散布図が表示される。

図4





フォーム右上のX印をクリックして閉じると、次の成分の指定が求められる。0以下の値を設定すると、Varimax回転後のパターン行列の表示は終了して、斜交回転が始まる。斜交回転はクオーティミン回転である。回転における軸の選択において、足立・山本(2024)では「j < k」の制約が置かれている(p. 140)が、この制約条件では最後の軸は動かないので、制約条件を「j != k」とした(リスト3)。

斜交回転後は、成分が直交していないので、直交座標による表示はない。パターン行列は出力ファイルに出力されている。

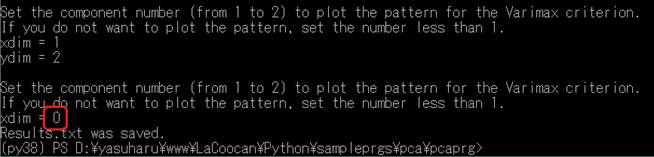

斜交回転後、プログラムは終了し、端末画面には以下のような出力が表示される。





Set the component number (from 1 to 2) to plot the pattern for the Varimax criterion.

If you do not want to plot the pattern, set the number less than 1.

xdim = 0

ck = 0.06213042525789447    n_try = 1

ck = 0.6850740697132184    n_try = 2

ck = 0.47722207137964623    n_try = 3

ck = 0.0021437810652332264    n_try = 4

ck = 3.2208237454507853e-07    n_try = 5

Results.txt was saved.





ck = 0.0621304・・・」は、クオーティミン回転における繰り返し計算における変化量である。



プログラムの実行終了後、出力ファイルResults.txtを開くと以下のようになっている。





Input data file = DataSubjects.xlsx





n_vars = 6

Var_names...

        ID       Jpn       Eng      Hist      Math      Phys      Chem



         1    48.000    46.000    60.000    47.000    68.000    44.000

         2    54.000    49.000    63.000    61.000    49.000    45.000

         3    48.000    55.000    47.000    49.000    49.000    47.000

         4    83.000    78.000    85.000    79.000    66.000    63.000

         5    56.000    49.000    56.000    78.000    70.000    73.000

         6    78.000    86.000    76.000    67.000    67.000    75.000

         7    62.000    64.000    59.000    62.000    69.000    57.000

         8    80.000    78.000    82.000    82.000    80.000    75.000

         9    55.000    49.000    58.000    79.000    67.000    75.000

        10    53.000    65.000    63.000    75.000    89.000    77.000

        11    45.000    52.000    53.000    47.000    41.000    42.000

        12    59.000    62.000    72.000    56.000    72.000    72.000

        13    44.000    34.000    49.000    54.000    65.000    59.000

        14    79.000    64.000    75.000    37.000    15.000     9.000

        15    62.000    69.000    66.000    71.000    67.000    66.000

        16    72.000    63.000    66.000    80.000    84.000    72.000

        17    78.000    82.000    83.000    81.000    67.000    81.000

        18    62.000    73.000    63.000    60.000    64.000    67.000

        19    66.000    60.000    61.000    64.000    43.000    63.000

        20    70.000    66.000    71.000    50.000    55.000    52.000





                        Lambda   cum.sqr         %

            Lambda-1   1.83432   3.36473     56.08

            Lambda-2   1.40444   5.33718     88.95

            Lambda-3   0.53507   5.62349     93.72

            Lambda-4   0.46458   5.83932     97.32

            Lambda-5   0.31091   5.93599     98.93

            Lambda-6   0.25301   6.00000    100.00





Pattern matrix for the principal components =

              comp.1    comp.2

       Jpn  -0.75184   0.61221

       Eng  -0.81468   0.43846

      Hist  -0.78026   0.54381

      Math  -0.80603  -0.44283

      Phys  -0.59683  -0.71379

      Chem  -0.72185  -0.63568





Principal components...

        ID    comp.1    comp.2

         1   1.14263  -0.31126

         2   0.85614   0.13922

         3   1.39156  -0.16393

         4  -1.43025   0.91747

         5   0.08185  -1.28077

         6  -1.24203   0.64068

         7   0.12871  -0.19691

         8  -1.66954   0.17136

         9   0.04574  -1.24292

        10  -0.51805  -1.35126

        11   1.55819   0.17149

        12  -0.18071  -0.22545

        13   1.39459  -1.24212

        14   1.11698   3.19106

        15  -0.37087  -0.20919

        16  -0.86467  -0.70070

        17  -1.64668   0.40461

        18  -0.16398   0.01236

        19   0.25673   0.31686

        20   0.11365   0.95938





Varimax rotation was applied...





Pattern for the Varimax rotated components =

              comp.1    comp.2

       Jpn  -0.96872  -0.04061

       Eng  -0.90049  -0.21231

      Hist  -0.94461  -0.11065

      Math  -0.30941  -0.86605

      Phys   0.02688  -0.93004

      Chem  -0.11849  -0.95452





Sorted Pattern for Varimax rotation =

              comp.1    comp.2

       Jpn  -0.96872  -0.04061

      Hist  -0.94461  -0.11065

       Eng  -0.90049  -0.21231

      Chem  -0.11849  -0.95452

      Phys   0.02688  -0.93004

      Math  -0.30941  -0.86605





Components for Varimax...

        ID    comp.1    comp.2

         1   1.06152   0.52504

         2   0.54831   0.67209

         3   1.15006   0.80042

         4  -1.67887  -0.26219

         5   0.91085  -0.90412

         6  -1.35442  -0.34447

         7   0.22694  -0.06197

         8  -1.36301  -0.97925

         9   0.85871  -0.89975

        10   0.50869  -1.35481

        11   1.05226   1.16195

        12   0.01432  -0.28858

        13   1.86754  -0.00440

        14  -1.28092   3.12886

        15  -0.13876  -0.40256

        16  -0.18224  -1.09792

        17  -1.50063  -0.78955

        18  -0.13091  -0.09952

        19  -0.01807   0.40741

        20  -0.55136   0.79330





Quartimin rotation was applied...





Pattern for the Quartimin rotated components =

              comp.1    comp.2

       Jpn  -0.98386   0.07338

       Eng  -0.89359  -0.10999

      Hist  -0.95085  -0.00098

      Math  -0.21176  -0.84744

      Phys   0.13917  -0.95262

      Chem  -0.00627  -0.96038





Correlation matrix of the components...

              comp.1    comp.2

    comp.1   1.00000   0.23068

    comp.2   0.23068   1.00000





Sorted Pattern for Promax rotation =

       Jpn  -0.98386   0.07338

      Hist  -0.95085  -0.00098

       Eng  -0.89359  -0.10999

      Chem  -0.00627  -0.96038

      Phys   0.13917  -0.95262

      Math  -0.21176  -0.84744





Components for Quartimin...

        ID    comp.1    comp.2

         1   1.11499   0.64553

         2   0.62217   0.73158

         3   1.23472   0.92937

         4  -1.69791  -0.45665

         5   0.80048  -0.79145

         6  -1.38511  -0.50044

         7   0.21828  -0.03502

         8  -1.46686  -1.13187

         9   0.74920  -0.79320

        10   0.34902  -1.28605

        11   1.17926   1.27699

        12  -0.01906  -0.28493

        13   1.85457   0.21394

        14  -0.91147   2.95767

        15  -0.18427  -0.41602

        16  -0.30767  -1.11169

        17  -1.58169  -0.95956

        18  -0.14151  -0.11414

        19   0.02904   0.40251

        20  -0.45617   0.72341









参考文献

足立浩平・山本倫生(2024)主成分分析と因子分析.共立出版

Deisenroth, Faisal, and Ong (2020), Mathematics for Machine Learning. Cambridge University Press.

Y. Okamoto (2005) “On the Special Type of Principal Component Analysis: It should belong to factor analysis.” Japan Women’s University Journal (Faculty of Integrated Arts and Social Sciences), 16, 43-50

Y. Okamoto (2006) “A Justification of Rotation in Principal Component Analysis: Projective viewpoint of PCA.” Japan Women’s University Journal (Faculty of Integrated Arts and Social Sciences), 17, 59-71.

岡本安晴(2009)「統計学を学ぶための数学入門[下]」培風館

岡本安晴(2014)「心理学データ分析と測定」勁草書房

岡本安晴(2019)「いまさら聞けないPythonでデータ分析:多変量解析、ベイズ統計分析(PyStan、PyMC)」丸善出版

山本倫生(2019)因子分析モデルにおける因子回転問題.計算機統計学、322144







リスト1 メインプログラムMainPrg.py



#

#       Principal Components Analysis with Rotation of Components

#                           Yasuharu Okamoto, 2016.10, 2025.06

#

import numpy as np

import pandas as pd

from init_pca import InitPCA

from rotate import *

from PlotComp import PlotPattern

from ArrangePat import ArrangePtn



s = input("Input data file (*.xlsx) = ")

data = pd.read_excel(s)



#

#       Prepare the output file

#

s_out = input("Output data file = ")

f_out = open(s_out, "w")

f_out.write("Input data file = " + s + "\n\n")



#

#           Calculate the principal components

#

calc_init_pca = InitPCA(data, f_out)

var_names, n_data, n_vars, CaseID, n_comp, Pat, PComp = calc_init_pca.calc_pca()



"""

            var_names:     A list of variable names

            n_data:        The number of cases in data

            n_vars:        The number of variables

            CaseID:        The variable for case idenfication (string type)

            n_com:         The number of componets

            Pat:           The pattern matrix of the principal components

            PComp:         The matrix of the principal components

"""



f_out.write("\n\nPrincipal components...\n")

f_out.write("%10s"%var_names[0])

for j in range(0, n_comp):

    f_out.write("%10s"%("comp.%d"%(j + 1)))

f_out.write("\n")

for i in range(0, n_data):

    f_out.write("%10s"%CaseID[i])

    for j in range(0, n_comp):

        f_out.write("%10.5f"%PComp[i, j])

    f_out.write("\n")



PlotPtn = PlotPattern( Pat, var_names, n_vars, n_comp, " ...principal components" )

while True:

    print("\nSet the component number (from 1 to %d) to plot the pattern."%n_comp)

    print("If you do not want to plot the pattern, set the number less than 1.")

    xdim = int(input("xdim = "))

    if xdim < 1:

        break

    ydim = int(input("ydim = "))

    PlotPtn.Plot(xdim, ydim)



rot = Varimax_Orthomax(Pat)

PatV = rot.rotate()



f_out.write("\n\nVarimax rotation was applied...\n\n")

f_out.write("\nPattern for the Varimax rotated components =\n")

f_out.write("%10s"%" ")

for j in range(0, n_comp):

    f_out.write("%10s"%("comp.%d"%(j + 1)))

f_out.write("\n")

for i in range(0, n_vars):

    f_out.write("%10s"%var_names[i + 1])

    for j in range(0, n_comp):

        f_out.write("%10.5f"%PatV[i, j])

    f_out.write("\n")



ArgPtn = ArrangePtn(var_names, PatV, n_vars, n_comp)

PtnArgd = ArgPtn.arrange()

f_out.write("\n\nSorted Pattern for Varimax rotation =\n")

f_out.write("%10s"%" ")

for j in range(0, n_comp):

    f_out.write("%10s"%("comp.%d"%(j + 1)))

f_out.write("\n")

for i in range(0, n_vars):

    f_out.write("%10s"%PtnArgd[i][0])

    for j in range(0, n_comp):

        f_out.write("%10.5f"%PtnArgd[i][1][j])

    f_out.write("\n")



PlotPtn = PlotPattern( PatV, var_names, n_vars, n_comp, " ...Varimax rotated components" )

while True:

    print("\nSet the component number (from 1 to %d) to plot the pattern for the Varimax criterion."%n_comp)

    print("If you do not want to plot the pattern, set the number less than 1.")

    xdim = int(input("xdim = "))

    if xdim < 1:

        break

    ydim = int(input("ydim = "))

    PlotPtn.Plot(xdim, ydim)



PCompV = PComp @ Pat.transpose() @ PatV @ np.linalg.inv(PatV.transpose() @ PatV)



f_out.write("\n\nComponents for Varimax...\n")

f_out.write("%10s"%var_names[0])

for j in range(0, n_comp):

    f_out.write("%10s"%("comp.%d"%(j + 1)))

f_out.write("\n")

for i in range(0, n_data):

    f_out.write("%10s"%CaseID[i])

    for j in range(0, n_comp):

        f_out.write("%10.5f"%PCompV[i, j])

    f_out.write("\n")



obrot = Oblique_Quartimin(Pat)

Patob, Phi = obrot.rotate()



f_out.write("\n\nQuartimin rotation was applied...\n\n")

f_out.write("\nPattern for the Quartimin rotated components =\n")

f_out.write("%10s"%" ")

for j in range(0, n_comp):

    f_out.write("%10s"%("comp.%d"%(j + 1)))

f_out.write("\n")



for i in range(0, n_vars):

    f_out.write("%10s"%var_names[i + 1])

    for j in range(0, n_comp):

        f_out.write("%10.5f"%Patob[i, j])

    f_out.write("\n")



f_out.write("\n\nCorrelation matrix of the components...\n")

f_out.write("%10s"%" ")

for j in range(0, n_comp):

    f_out.write("%10s"%("comp.%d"%(j + 1)))

f_out.write("\n")

for i in range(0, n_comp):

    f_out.write("%10s"%("comp.%d"%(i + 1)))

    for j in range(0, n_comp):

        f_out.write("%10.5f"%Phi[i, j])

    f_out.write("\n")



ArgPtn = ArrangePtn(var_names, Patob, n_vars, n_comp)

PtnArgd = ArgPtn.arrange()

f_out.write("\n\nSorted Pattern for Promax rotation =\n")

for i in range(0, n_vars):

    f_out.write("%10s"%PtnArgd[i][0])

    for j in range(0, n_comp):

        f_out.write("%10.5f"%PtnArgd[i][1][j])

    f_out.write("\n")



PCompob = PComp @ Pat.T @ Patob @ np.linalg.inv(Patob.T @ Patob)

f_out.write("\n\nComponents for Quartimin...\n")

f_out.write("%10s"%var_names[0])

for j in range(0, n_comp):

    f_out.write("%10s"%("comp.%d"%(j + 1)))

f_out.write("\n")

for i in range(0, n_data):

    f_out.write("%10s"%CaseID[i])

    for j in range(0, n_comp):

        f_out.write("%10.5f"%PCompob[i, j])

    f_out.write("\n")



f_out.close()

print(s_out + " was saved.")







リスト2 主成分分析のクラス型InitPCAのモジュールinit_pca.py



import scipy.stats as scst

import numpy as np

import matplotlib.pyplot as plt





class InitPCA:

    """

                   Calculation of the Principal Components

    """

    def __init__(self, data, f_out):

        self.data = data

        self.f_out = f_out





    def calc_pca(self):

        var_names = self.data.keys();

        print(var_names)



        n_data, n_vars = self.data.shape

        n_vars -= 1

        print('n_data =', n_data)

        print('n_vars =', n_vars)



        print('data =\n', self.data)



        CaseID = self.data[var_names[0]].values

        print('CaseID =\n', CaseID)

        print('data.values =\n', self.data.values)



        self.f_out.write("\n")

        self.f_out.write("n_vars = %d\n"%n_vars)

        self.f_out.write("Var_names...\n")

        for vn in var_names:

            self.f_out.write("%10s"%vn)

        self.f_out.write("\n")

        self.f_out.write("\n")

        for i in range(0, n_data):

            self.f_out.write("%10s"%CaseID[i])

            for j in range(0, n_vars):

                self.f_out.write("%10.3f"%self.data.values[i][j+1])

            self.f_out.write("\n")



        Z = np.array(self.data.values[:,1:], dtype=float)

        print('Z =\n', Z)

        Z = scst.zscore(Z, axis=0)

        print('Z =\n', Z)



        R = (Z.transpose() @ Z) / n_data

        print('R =\n', R)



        Lmbd2, V = np.linalg.eigh(R)

        print('Lmbd2 =', Lmbd2)

        print('V =\n', V.T)

        Lmbdsort = np.argsort(-Lmbd2)

        Lmbd2 = Lmbd2[Lmbdsort]

        V = V[:,Lmbdsort]

        print('Lmbd2 =', Lmbd2)

        print('V =\n', V.T)



        Lmbd = []

        for i in range(0, Lmbd2.shape[0]):

            if Lmbd2[i] > 1.0e-12:

                Lmbd.append(Lmbd2[i]**0.5)

            else:

                Lmbd.append(0.0)



        n_eign = len(Lmbd)

        print('Lmbd =\n', Lmbd)



        sum_L2 = np.sum(Lmbd2)

        cum_sum = 0.0



        print("\n")

        print(("%30s"%"Lambda") + ("%10s"%"cum.sqr") + ("%10s"%"%") + "\n")

        self.f_out.write(

            ("\n\n%30s"%"Lambda") + ("%10s"%"cum.sqr") + ("%10s"%"%") + "\n")

        for i in range(0, n_eign):

            self.f_out.write('{0: >20s}'.format("Lambda-{0}".format(i + 1)))

            self.f_out.write('{0:>10.5f}'.format(Lmbd[i]))

            cum_sum += Lmbd2[i]

            self.f_out.write("%10.5f"%cum_sum)

            self.f_out.write("%10.2f\n"%(100.0 * cum_sum / sum_L2))

            print('{0: >20s}'.format("Lambda-{0}".format(i + 1)), end = '')

            print('{0:>10.5f}'.format(Lmbd[i]), end = '')

            print("%10.5f"%cum_sum, end = "")

            print("%10.2f"%(100.0 * cum_sum / sum_L2))



        plt.plot(np.arange(1, n_eign+1), Lmbd)

        plt.ylabel('Lambda', fontsize = 16)

        plt.tight_layout()

        plt.show()



        s0 = input("\nNumber of components = ")

        n_comp = int(s0)

        if (n_comp > n_vars):

            n_comp = n_vars

        elif (n_comp < 1):

            n_comp = 1

        if (n_comp > n_eign):

            n_comp = n_eign



        L1 = np.full((n_comp, n_comp), 0.0)

        for i in range(n_comp):

            L1[i, i] = Lmbd[i]



        V1 = V[:,:n_comp]



        Pat = V1 @ L1



        self.f_out.write("\n\nPattern matrix for the principal components =\n")

        self.f_out.write("%10s"%" ")

        for i in range(0, n_comp):

            self.f_out.write("%10s"%("comp.%d"%(i + 1)))

        self.f_out.write("\n")

        for i in range(0, n_vars):

            self.f_out.write("%10s"%var_names[i + 1])

            for j in range(0, n_comp):

                self.f_out.write("%10.5f"%Pat[i, j])

            self.f_out.write("\n")



        PComp = Z @ V1 @ np.linalg.inv(L1)



        return var_names, n_data, n_vars, CaseID, n_comp, Pat, PComp









リスト3 回転を行うモジュールrotate.py



"""

       Y.Okamoto, 2025.06



       参考文献

       足立浩平・山本倫生(2024)

       主成分分析と因子分析、共立出版

"""



import numpy as np

import scipy.optimize as so





class Varimax_Orthomax:

    def __init__(self, C):

        """

                C: 負荷行列

        """

        self.C = C



    def rotate(self):

        """

               足立・山本(2014)、p.137

        """

        p = len(self.C)

        Mw = np.identity(p) - np.ones((p,p))/p    #  w==1

        Gmma = self.C



        while True:

            Gmma2 = Gmma * Gmma

            S_tilde = Gmma * (Mw @ Gmma2)

            U, Delta, Vh = np.linalg.svd(self.C.T @ S_tilde)

            T = U @ Vh

            Gmma_new = self.C @ T

            ck = np.sum((Gmma - Gmma_new)**2)

            Gmma = Gmma_new

            print(ck)

            if ck < 1.0e-6:

                break

        return Gmma     #   回転後の行列



class Oblique_Quartimin():

    """

            C: 負荷行列

    """

    def __init__(self, C):

        self.C = C



    def rotate(self):

        """

               足立・山本(2014)、p.140

        """

        p, m = np.shape(self.C)

        Gmma = self.C

        Phi = np.identity(m)

        T = np.identity(m)



        def calc_tjk(gmma, phi, j, k):



            class Gammas():

                def __init__(self, C, Phi, j, k):

                    #self.c = Gmma

                    self.C = C

                    self.Phi = Phi

                    self.j = j

                    self.k = k



                def f_gammas(self, t):

                    """

                          Quartimin criterion

                    """

                    c = self.C

                    Phi = self.Phi

                    p = np.shape(c)[0]

                    j = self.j

                    k = self.k

                    v = 0.0

                    for i in range(p):

                        g2_ij = (1 - 2*t*Phi[j][k] + (t**2)) * (c[i][j]**2)

                        g2_ik = (t**2) * (c[i][j]**2) + \

                                2 * t * c[i][j] * c[i][k] + c[i][k]**2

                        v += g2_ij * g2_ik

                    return v



            calc_g = Gammas(gmma, phi, j, k)

            result = so.minimize_scalar(calc_g.f_gammas, [-10, 10])

            #print(result)

            return result.x



        n_try = 0

        while True:

            Gmma0 = Gmma

            for j in range(m):

                for k in range(m):

                    if j != k:      #   j < k j != k に変更

                        tjk = calc_tjk(Gmma, Phi, j, k)

                        tjj = (1 - 2 * tjk * Phi[j][k] + (tjk**2)) ** 0.5

                        T_jk = np.identity(m)

                        T_jk[j][j] = tjj

                        T_jk[j][k] = tjk

                        Gmma = Gmma @ T_jk

                        inv_T_jk = np.linalg.inv(T_jk)

                        Phi = inv_T_jk @ Phi @ (inv_T_jk.T)

                        T = T @ T_jk

            n_try += 1



            ck = np.sum((Gmma0 - Gmma) ** 2)

            print('ck =', ck, '   n_try =', n_try)

            if (ck < 1.0e-6) or (n_try > 50):

                break

            else:

                T = np.identity(m)



        return Gmma, Phi      #   回転後の負荷行列と共分散行列









Home
